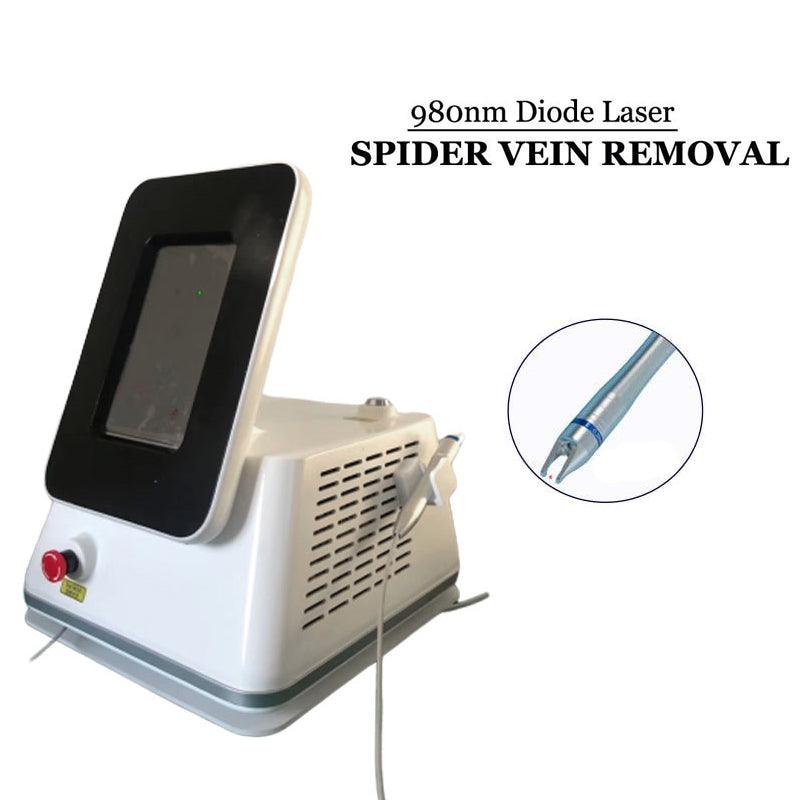

Diode laser Vessel Removal Machine For Spider Vein Removal

Spider Veins Laser Removal Machine of 980 nm Diode Laser is mainly used for the vascular skin changes treatment. With 1~30 watt optional, this 980nm diode laser for vascular removal is one of the most powerful of its class, allowing it to use large spot sizes. The high power allows  our 980nm diode laser to emit an extraordinarily short pulse, effectively targeting disturbing vessels while protecting the surrounding skin.

With 980nm, 980nm diode laser is one latest, powerful and reliable technology which is safe and effective treatment for unwanted spider veins, vascular and rosacea. Spider Vein Removal Machine is lightweight with a compact design. The system can thus be used in different treatment rooms, clinics, spa salon or offices.

Benefits:

• Advanced Technology – 980nm laser optical fiber coupling output technique.
• Precision – Small and exquisite handpiece for precise operation.
• Portable – Portable and simple to operate.
• Effective – 30-watt peak power for extremely short pulses.
• Short Treatment Time – Quick treatment with outstanding curative effects.
• Five spot sizes – from 0.2 to 3.0 mm.
• Wide application range.
• Facial vascular.
• Angiotelectasis.

Treatments

980nm diode laser optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.

To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto 0.2-0.5mm diameter, in order to enable more focused energy to reach the target tissue, while avoiding burning the surrounding skin tissue.

The laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density so that the small blood vessels are no longer exposed, at the same time, the skin’s elasticity and resistance are also significantly enhanced.

It provides specialized treatment for a variety of vascular lesions including:

1. Vascular lesions
2. Proliferative lesion
3. Age spots and sun spots
4. Spider veins
5. Linear angitelectasis
6. Cherry angiomas
7. Facial vascular
8. Angiotelectasis

Vascular Lesions

Varicose and spider veins are blood vessels that become enlarged and visible due to weakened valves, which cause blood to pool rather than flow to the heart.

980nm diode laser for vascular removal treatments offers effective, non-invasive solutions that close these veins and reduce or eliminate their appearance. The laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density so that the small blood vessels are no longer exposed, at the same time, the skin’s elasticity and resistance are also significantly enhanced.

A variety of technologies are used to target the affected blood vessels beneath the skin, leaving you with smooth, clear skin and renewed confidence.

The treatments are safe and effective and provide reliable, long-term results.

Technology

With a peak power output of  3o watts, PL-M01 is one of the most powerful laser systems of its series. Its high power allows it to target blood vessels effectively using short pulses while protecting the surrounding skin. Spot sizes of up to 3.0mm cover a wide range of blood vessel types.



With Five spot Sizes To Treat Different Blood Vessel Types

Spider Vein Removal Machine offers adjustable 15ms ~ 100ms pulse width and five different spot sizes for perfect adjustment to patient skin type, treatment area, and indication. The spot size can be set directly on the handpiece without the need to change fibers. The system is lightweight, compact, and portable allowing it to be used in different clinics, beauty salons, and treatment offices.

Aiming Beam: 650nm

650nm red laser provides the most convenient, fast and accurate point light source location, making the vascular vein removal treatment more precise.





Technical Specifications:

Output	Fiber-optic coupling
Laser Wavelength	980nm
Output Power	1-15W/20W/25W/30W (Options)
Pulse Width	15ms-100ms
Pulse Frequency	1-5 Hz
Mode	Pulse mode
Operate Mode	Touch screen
Language	Chinese, English, Spanish, Russian, German, French, Portuguese, or Romanian
Aiming Beam	650nm
Net/Gross Weight	5kg/10kg
Input AC	96-264V, 47-53Hz
Length Of Fiber	2m
Operation interface	8.0 inch
Cooling	Air cooling
Machine Dimensions	470mm*350mm*178mm
Flightcase Dimensions	430mm*400mm*280mm
